951500 - PKG,MR INV 352 MPA PLUS SYSTEM DUAL (PUSH ONLY)

Packaging: 1 PER EA
$33,109.48/ea $30,591.00/1 PER EA only $30,591.00/eaSave 8%

Usually ships within 3-5 business days

OVERVIEW

Miller® Invision™ 352 MPa, D-74 MPa Plus (Dual), 2 Bernard™ BTB 400 A 15 Ft, Running Gear Pkg

MIG and synergic Pulsed MIG system with optimized weld programs for both steel and aluminum.

Auto-Line™ Power Management Technology: Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting,. Ideal solution for dirty or unreliable input power. Built-in MIG and Pulsed MIG programs: Automatically set the optimal parameters for a wide variety of wires making it easy to set up and use. Synergic Pulsed MIG: As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments. Profile Pulse™: Provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance. Wind Tunnel Technology™: Protects internal components, greatly improving reliability. SharpArc® technology: Fine tunes puddle fluidity in Pulsed MIG (GMAW-P) welding. Recommended Aluminum Solutions: Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with the 74 MPa Plus feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance. Fan-On-Demand™: Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
Additional Information
Packaging Description:1 Per Ea
Weld Process:MIG
Brand:Miller
Voltage:n/a
Amps:n/a
Duty Cycle:n/a
Watts:n/a
Cutting Capacity:n/a

INCLUDED

  • .035-.045 reversible dual V drive rolls (2 sets)
  • 4/0 weld cables, Gas valve and gas hose
  • BTB 400A Gun (qty 2)
  • Centerfire contact tips, .035 (QTY 3), .045 (QTY 2) 2 sets
  • Dual 74 MPa Plus Feeder
  • Invision 352 MPa
  • Running gear, cylinder rack

CATALOGUE & SPEC SHEETS

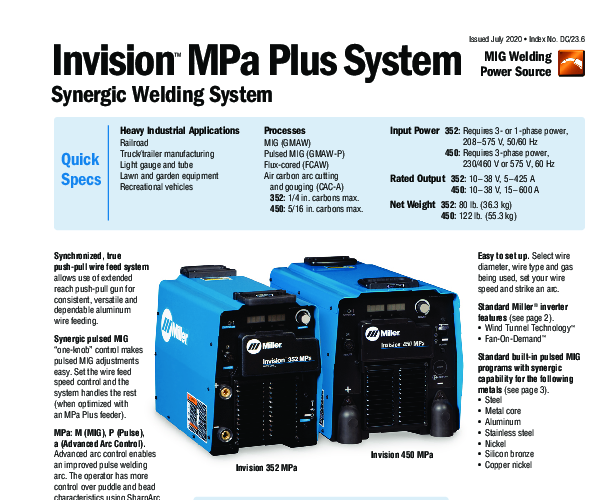

Spec Sheet
