951451 - PKG,MILLERMATIC 350P AL W/XR-A ALUMA-PRO 15'

Packaging: 1 PER EA

Sorry, product has been discontinued by the vendor.

OVERVIEW

Miller® Millermatic 350P Aluminum Push-Pull Gun Welding System With 15-Ft. (4.6 M) Xr-Aluma-Pro Air-Cooled Gun

First single- or three-phase power Millermatic that's optimized to weld aluminum. Perfect for fabrication, manufacturing, maintenance and repair.

NEW! True Torque Feed Motor Push-Pull Design: The Millermatic 350P Aluminum features a torque feed push-pull motor that provides continuous push force to the wire while the gun motor controls the speed at the gun. The motors work together to provide accurate and positive wire feed speed without wire shaving or deformation. NEW! Electronic Wire Spool Brake: Electronic wire spool brake allows the wire spool to free spool while welding. This provides optimum wire feed delivery. When the gun trigger is released the brake engages. Synergic Pulse: Synergic pulsed welding mode offers the simplicity of single-knob control. The machine will select the correct pulse power based on the wire feed speed (WFS) set by the operator.  Learn more about synergic pulse mode >> NEW! Synergic MIG and One-Knob Control: Synergic MIG provides communication between power source, feeder and gun. As wire speed increases/decreases, the arc voltage also increases/decreases to maintain a constant welding arc. Synergic one-knob control allows you to set the wire feed speed control on the gun, which simplifies set-up and reduces training time. No need to travel back to the power source to change multiple parameters. NEW! Trigger Schedule Select: Trigger schedule select (SCHD) allows the operator to select the alternative schedule by quickly tapping the gun trigger when not welding. Useful when switching between two welding parameters is needed. NEW! Trigger Hold: Trigger hold allows the operator to release the trigger while making long continuous welds, reducing hand and finger fatigue. NEW! Jog and Purge Feature: Jog and purge allow operator to jog the wire, or purge gas lines and preset gas pressure at the regulator before welding. Auto Gun Detect: Direct connection for Miller 10-pin XR-Aluma-Pro™ and XR™ Pistol Grip air-cooled push-pull guns. With Auto Gun Detect, simply pull the trigger for the gun to be used and you’re ready to weld. Note: Not compatible with standard MIG guns.
Additional Information
Packaging Description:1 Per Ea
Weld Process:MIG
Brand:Miller
Voltage:n/a
Amps:n/a
Duty Cycle:n/a
Watts:n/a
Cutting Capacity:n/a

INCLUDED

  • .035 and .047-in. (0.9 and 1.2 mm) U-groove aluminum drive rolls
  • 10-ft. (3 m) industrial power cord (without plug)
  • 10-ft. (3 m) work cable with clamp
  • Factory-installed gas solenoid
  • Factory-installed, low-mounted running gear/cylinder rack
  • Power source
  • Smith® Argon mix regulator/flow gauge with hose
  • XR-Aluma-Pro™ 15-ft. (4.6 m), 300 A gun for .030–.047 in. (0.8–1.2 mm) aluminum (#300 000)

APPLICATIONS

  • AluminumWelding
  • WeldingProjects

CATALOGUE & SPEC SHEETS

Miller Catalog

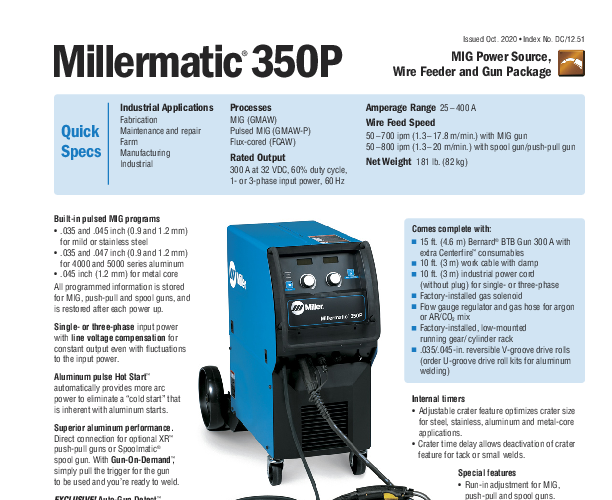

Spec Sheet
