0445301881 - ESAB Aristo MIG 4004i Pulse with WeldCloud (460V)

Packaging: 1 per ea
$13,304.35/ea $12,295.91/1 per ea only $12,295.91/eaSave 8%

Usually ships within 3-5 business days

OVERVIEW

Smart Pulse MIG Welding for Professional Fabricators

Take your welding operation to the next level with the ESAB Aristo MIG 4004i Pulse, a powerhouse machine that combines legendary ESAB arc quality with modern digital connectivity. Designed for the serious fabricator, this 460V multi-process welder handles everything from heavy structural steel to delicate aluminum work with ease. The "Pulse" in the name refers to its advanced pulsing capabilities, which help you achieve spatter-free welds, excellent bead aesthetics, and reduced post-weld cleanup.

Ready for the Future with WeldCloud

This isn't just a welder; it's a smart device. With the WeldCloud Top Box built directly onto the unit, you can connect the machine to your shop's Wi-Fi network effortlessly. This feature automatically logs your welding data, helping you track productivity and document weld parameters without stopping to write things down. It's the perfect solution for shops looking to modernize their workflow and ensure consistent quality across every job.

Versatility on the Job

Whether you are welding thick plates or thin sheets, the Aristo 4004i adapts to your needs. Its SuperPulse functionality is a game-changer for aluminum welding, giving you TIG-like appearance with MIG speeds. The machine also supports Stick (MMA) welding and Carbon Arc Gouging, making it a versatile tool for repair and maintenance work. The user-friendly interface allows for quick setup of synergic lines, so you can spend less time dialing in settings and more time burning wire.

Built Tough

Despite its advanced technology, the Aristo 4004i is built to survive the shop floor. The compact and sturdy design protects internal components from dust and water spray. It delivers a massive 400 amps of output, giving you the power to run larger diameter wires and achieve deep penetration when necessary. Pair it with an Aristo Feed wire feeder for a complete, high-performance welding system that delivers smooth, stable wire feeding in any position.

Additional Information
Brand:ESAB
Amperage:400
Voltage:460 V
Weld Process:Multi-Process
Duty Cycle:60%, 100%
Process Type:MIG/MAG, Pulse MIG, Stick (MMA), TIG (LiveTig)
Input Voltage:460V
Phase:3-Phase
Output Range:16 - 400 A
Connectivity:WeldCloud Top Box Integrated
Protection Class:IP23
Applications:Advanced Mild and Stainless Steel Fabrication, Aluminum Welding, Yellow Goods, Transportation
Packaging Description:1 per ea

INCLUDED

  • Aristo MIG 4004i Pulse Power Source (460V)
  • WeldCloud Top Box (Integrated)
  • Instruction Manual
  • 5m Mains Cable

APPLICATIONS

  • General Industrial Fabrication
  • Automotive and Transportation Manufacturing
  • Energy and Power Generation
  • Shipbuilding and Offshore
  • Steel Construction and Civil Engineering
  • Aluminum Trailer Manufacturing

FAQ

The WeldCloud Top Box integrates IoT connectivity directly into the power source, allowing for automatic data logging, productivity tracking, and documentation of welding parameters to ESAB's cloud platform via Wi-Fi or Ethernet.

Yes, the Aristo MIG 4004i features advanced Pulse and SuperPulse capabilities, which are essential for low-spatter welding and controlling heat input on materials like aluminum and stainless steel.

This specific SKU (0445301881) is configured for 460V 3-phase input power.

Yes, the Aristo MIG 4004i is a multi-process power source that supports MIG/MAG, Pulse MIG, and Stick (MMA) welding, as well as Carbon Arc Gouging.

It is typically compatible with ESAB's advanced wire feeders, such as the Aristo Feed 3004 and Aristo Feed 4804, which support the U6 and U82 control panels.

No, this SKU is for the power source and WeldCloud Top Box only. If water-cooled torches are required, a separate cooling unit (like the Cool 1) must be added.

The machine is rated at 400A at 60% duty cycle and 300A at 100% duty cycle, making it suitable for continuous heavy-duty operation.

Yes, it has an IP23 protection rating, which means it is protected against water spray and solid objects, making it suitable for outdoor use provided it is not submerged or in extreme downpours.

CATALOGUE & SPEC SHEETS

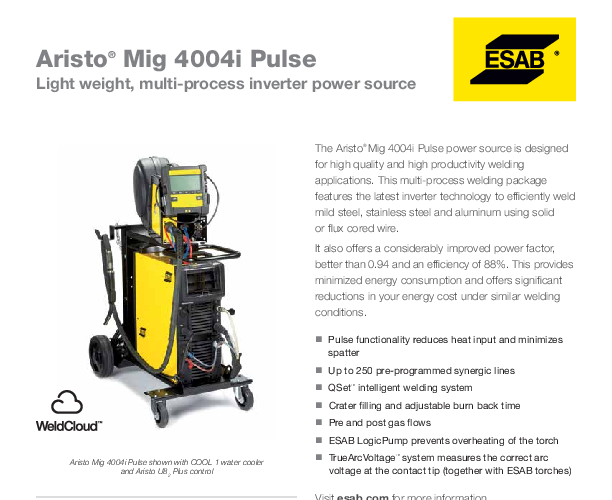

Spec Sheet
