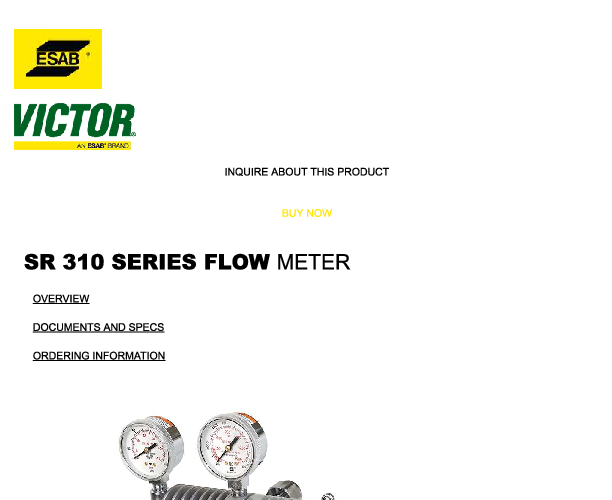

The Victor® SR 310 Series High Capacity Carbon Dioxide Flow gauge Regulator is a reliable and efficient option for delivering high performance in core wire applications. With a delivery range of 10 - 200 psig, this regulator is designed to meet your needs. It features a sturdy machined body with a housing cap and is fitted with 2" brass gauges and a 1 3/4" fabric reinforced neoprene diaphragm. The regulator has a maximum inlet pressure of 1500 psig and is equipped with a 320 CGA inlet connection with a sintered filter, as well as 5/8"-18 RH(F) outlet connections for long-lasting service.
This uniquely designed regulator also boasts an adjustable pressure gauge with aluminum heat sink fins, ensuring high flow rates without experiencing freeze-ups or noticeable changes in pressure or flow. It is important to note that when the backpressure exceeds 2 psig, it should be used with a flow meter.
Crafted with a machined aluminum body and housing cap, a 1.75" (44.5 mm) fabric reinforced neoprene diaphragm, and a stem type seat mechanism, this regulator is built to withstand demanding conditions. It is suitable for high flow CO2 applications, such as SR 310 (100 PSIG) and SR 311/312 (100 SCFH), as long as there is an adequate supply or source. The regulator also features a self-reseating relief valve, although it is not specifically designed to protect downstream equipment. Additionally, it comes with a sintered inlet filter for added convenience and ease of use.
| Additional Information |
|---|
| Packaging Description:pack of 1 |
| Item:Flow Regulator |
| Brand:Victor |
| Used On Which Gas:CO2 |
| CGA Fitting:cga320 |
| Max Inlet:2400psi |
| Max Outlet:200psi |
