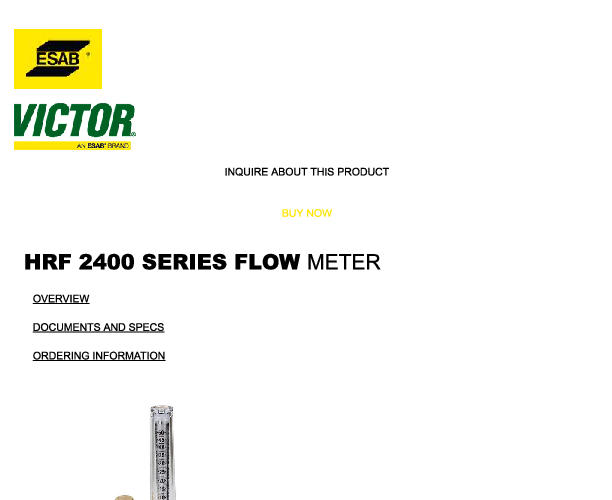

The Victor® HRF 2425 Series Medium Duty Flow meter is designed for MIG/TIG applications and offers reliable performance. With a maximum inlet pressure of 3000 psig and an outlet pressure of 25 psig, this flow meter ensures precise control. It has a flow range of 10 - 50 SCFH for argon and 20 - 150 SCFH for helium. The flow meter features 580 CGA-inlet connections and a bronze sintered inlet filter for added durability.
The machined brass body and housing cap, along with the fabric reinforced neoprene diaphragm, contribute to its sturdy construction. This regulator/flow meter combination is compact and easy to use. It measures 5.63" x 3" x 8 1/4" and includes a cover tube with overpressure protection. The flow meter is back pressure compensated and has an internal self-reseating relief valve. Please note that the relief valve is not designed to protect downstream equipment. The cover tube also contains overpressure protection.
Overall, the Victor® HRF 2425 Series Medium Duty Flow meter is an ideal choice for applications where dependability is essential. It comes with a calibrated tube at 25 psig, except for the HRF 2480 model.
| Additional Information |
|---|
| Packaging Description:pack of 1 |
| Item:Flowmeter |
| Brand:Victor |
| Used On Which Gas:Argon or Weldmix |
| CGA Fitting:cga580 |
| Max Inlet:NA |
| Max Outlet:50ft3/hr |
