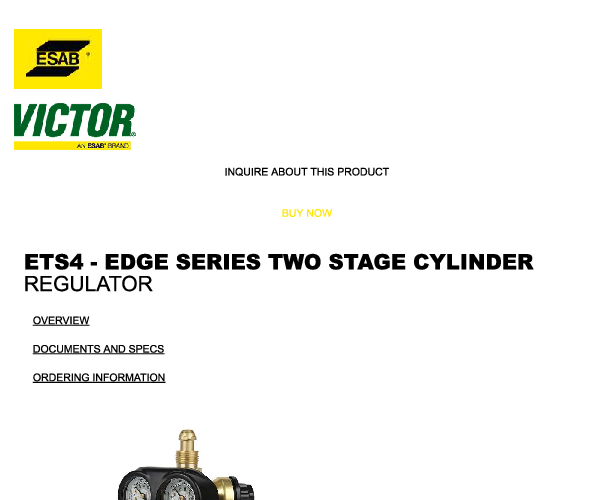

The Victor® ETS4 EDGE™ Series Two Stage High Capacity Oxygen Regulator is designed for applications requiring precise and constant outlet pressure. With a delivery range of 10 - 200 psig and a maximum inlet pressure of 3000 psig, this regulator offers reliable performance. It features a forged brass body, zinc-aluminum housing caps, a high impact ABS gauge guard, and a 2.7" fabric reinforced neoprene diaphragm.
Equipped with 1 1/2" UL listed/recognized gauges with a 4000 inlet gauge range and a 400 outlet gauge range, this regulator has a compact layout with recessed built-in gauges for protection. It has a 540 CGA inlet connection and a 9/16"-18 RH(M) outlet connection. The advanced design of this regulator combines form and functionality.
The easy-to-read gauges with enhanced graphics have color-coded knobs for quick gas identification. The user-friendly architecture includes a side-mounted knob for natural and safe hand/body positioning when adjusting the delivery pressure. The single impact point design helps safeguard critical system elements.
Featuring a flow coefficient of 0.488 Cv, this regulator provides uniform flow performance across a range of cylinder pressures with high sensitivity and accuracy in delivery pressure. It includes an external self-reseating relief valve, a stem type seat mechanism, and a nickel-plated bronze sintered inlet filter.
For added strength, safety, and protection of the regulator internals, it comes with a color-coded SLAM™ impact absorbing safety knob. Measuring 6.85" X 4.72" X 4.4", this regulator has a five-year warranty and meets or exceeds CGA E-4, UL 252, and ASTM G-175 promoted ignition test standards.
Key Features:
- Brass adjusting screw with forged T-Handle and Delrin insert bushing for durability and easier adjusting
- Die-forged brass spring housing cap for greater strength and durability
- Stem type seat mechanism
- Stainless steel diaphragm for accurate and long-lasting service
- Stainless ball in key for easy adjustment
- Adjusting spring pretested for quality assurance
- Sintered inlet filter with electroless nickel-plated bronze
- Precision machined nozzle for optimum flow control
Note: Regulators will deliver at least the stated upper range and, in some cases, may exceed it.
| Additional Information |
|---|
| Packaging Description:pack of 1 |
| Item:Regulator |
| Brand:Victor |
| Used On Which Gas:Oxygen |
| CGA Fitting:cga540 |
| Max Inlet:NA |
| Max Outlet:200psi |
