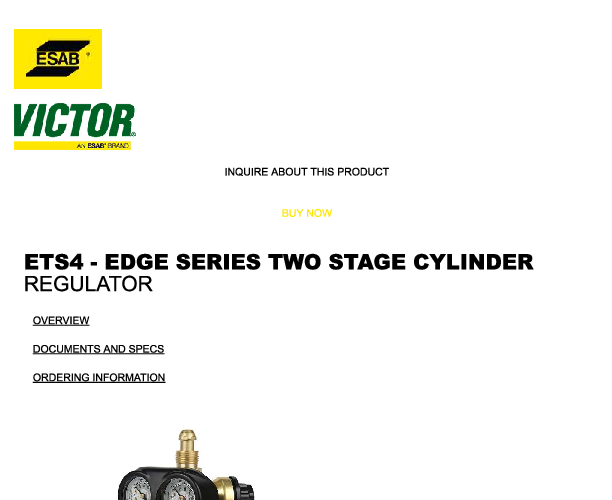

0781-5226 - ETS4-125-350 EDGE TWO STAGE REG - HYDROG

The Victor® ETS4 EDGE™ Series Two Stage High Capacity Hydrogen/Methane Regulator is designed for applications requiring precise and constant outlet pressure. With a delivery range of 5 - 125 psig, this regulator provides reliable performance in a compact layout. The built-in gauges are recessed into the body for protection.

Featuring a forged brass body, zinc-aluminum housing caps, and a high impact ABS gauge guard, this regulator is built to last. The 2.7" fabric reinforced neoprene diaphragm ensures durability and longevity.

The advanced design of this regulator combines both form and functionality. The easy-to-read gauges have enhanced graphics and color-coded knobs, allowing for quick gas identification. The user-friendly architecture includes a side-mounted knob for natural and safe hand positioning when adjusting the delivery pressure.

Safety is a top priority with this regulator. It has a single impact point configured to safeguard critical system elements. Additionally, it includes an external self-reseating relief valve, stem type seat mechanism, and nickel plated bronze sintered inlet filter. The color-coded SLAM™ impact absorbing safety knob provides added strength, safety, and protection for the internal components.

Backed by a five-year warranty, this regulator meets or exceeds CGA E-4, UL 252, and ASTM G-175 promoted ignition test standards. It is equipped with a brass adjusting screw with a forged T-Handle and Delrin insert bushing for durability and easy adjusting. The die-forged brass spring housing cap provides greater strength and durability. The stainless steel diaphragm ensures accurate and long-lasting service.

The precision machined nozzle allows for optimum flow control, ensuring uniform flow performance over a range of cylinder pressures. Regulators will deliver at least the stated upper range and may even exceed it in some cases.
